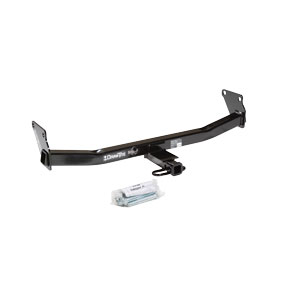

Class II Trailer Hitch
Part Number 36423
 [ Print ]
Click thumbnail image to enlarge.
Product Features
Draw-Tite’s Class II trailer hitch is a receiver-style hitch rated up to 3,500 lbs. Gross Trailer Weight (GTW) Weight Carrying (WC). Perfect for light-duty towing and hitch rack needs, the Draw-Tite “Tested Tough’ guarantee ensures that this hitch exceeds industry strength standards.

Draw-Tite begins with Computer Aided Design (CAD) matched to manufacturer & model year for a perfect fit and top towing performance. Draw-Tite combines this with solid, all-welded construction for maximum performance and safety under the toughest conditions. The E-Coat base with black powder coat finish keeps your hitch looking good and resists corrosion for many years of service.

Bolt-on installation with no welding required, and complete hardware kit and installation instructions are included. Backed by Draw-Tite’s nationwide limited lifetime warranty.

  • 1-1/4" Square Receiver Tube Opening

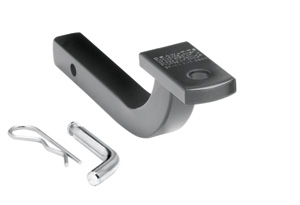

  • Removable Drawbar, Pin and Clip Sold Separately
  • Neat Appearance, All Frame Attachments
  • E-Coat Base w/ Black Powder Coat Finish
  • Rated up to 3,500 lbs. (GTW) Weight Carrying (WC)
  • Solid All-Welded Construction for Maximum Strength and Safety
  • Custom Built According to Manufacturer & Model Year
  • Ensures Perfect Fit and Top Towing Performance
  • Computer-Aided Design and Fatigue Stress Testing
  • Designed to Withstand Road Abuse Within Specified Capacities
  • Backed by a Nationwide Limited Lifetime Warranty
Product Details
Description:Frame Hitch™
Finish:Black Powder Coat
Weight Carrying:300/3,500 lbs. (TW/GTW)
Weight Distributing:0 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Boxed
Shipping Weight:24.2 lbs.
Shipping Size:15.75" L x 5.5" W x 43.25" H
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
2007 - 2010 Jeep, Compass, All Styles 15 min
2007 - 2010 Jeep, Compass, Rallye Edition 30 min
2007 Jeep, Patriot, All Styles 15 min
2008 - 2017 Jeep, Patriot, All Styles 30 min
2011 - 2017 Jeep, Compass, (Old Body Style) 30 min
