Class 4 Trailer Hitch - 10000 lbs
Part Number 41901
 [ Print ]
Click thumbnail image to enlarge.
Product Features
DRAW-TITE® Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,000 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 13,000 lbs. weight distribution (WD) and 1,300 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
  • CUSTOM DESIGNS: DRAW-TITE Class 4 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
  • STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
  • TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
  • CAPACITY: Rated for up to 10,000 lbs. GTW and up to 1,000 lbs. TW. Also suitable for use with Weight Distribution systems of up to 13,000 lbs. WD and 1,300 lbs. WDTW.
  • VERSATILE: This DRAW-TITE Class 4 hitch is designed to fit: 1988-1999 Chevrolet C1500, 1988-2000 Chevrolet C2500, 1988-2000 Chevrolet C3500, 1988-1999 Chevrolet K1500, 1988-2000 Chevrolet K2500, 1988-2000 Chevrolet K3500, 1988-1999 GMC C1500, 1988-2000 GMC C2500, 1988-2000 GMC C3500, 1988-1999 GMC K1500, 1988-2000 GMC K2500, 1988-2000 GMC K3500.
Product Details

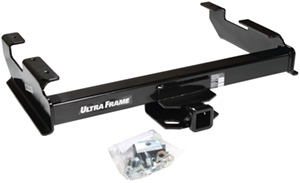

Description:Ultra Frame® Class 4 Trailer Hitch, 2 Inch Square Receiver, Black
Finish:Black Powder Coat Over E-Coat
Weight Carrying:1,000/10,000 lbs. (TW/GTW)
Weight Distributing:1,300/13,000 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Box w/Label
Shipping Weight:72.8 lbs.
Shipping Size:39" L x 27" W x 5" H
UPC:742512419016
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
1988 - 1999 Chevrolet, C1500, All Styles 30 min
1988 - 2000 Chevrolet, C2500, Regular & Extended Cabs 30 min
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs 30 min
1988 - 1999 Chevrolet, K1500, All Styles 30 min
1988 - 2000 Chevrolet, K2500, Regular & Extended Cabs 30 min
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs 30 min
1988 - 1999 GMC, C1500, All Styles 30 min
1988 - 2000 GMC, C2500, All Styles 30 min
1988 - 2000 GMC, C3500, All Styles 30 min
1988 - 1999 GMC, K1500, All Styles 30 min
1988 - 2000 GMC, K2500, All Styles 30 min
1988 - 2000 GMC, K3500, All Styles 30 min
1992 - 2000 Chevrolet, C2500, Crew Cab 30 min
1992 - 2000 Chevrolet, C3500, Crew Cab 30 min
1992 - 2000 Chevrolet, K2500, Crew Cab 30 min
1992 - 2000 Chevrolet, K3500, Crew Cab 30 min
