Class 5 Trailer Hitch - 12000 lbs
Part Number 41935
 [ Print ]

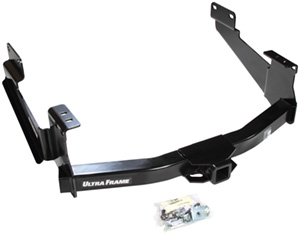

Click thumbnail image to enlarge.
Product Features
DRAW-TITE® Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 12,000 lbs. gross trailer weight (GTW) and up to 1,200 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 14,000 lbs. weight distribution (WD) and 1,400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
  • CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
  • STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
  • TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
  • CAPACITY: Rated for up to 12,000 lbs. GTW and up to 1,200 lbs. TW. For use with Weight Distribution systems of up to 14,000 lbs. WD and 1,400 lbs. WDTW.
  • VERSATILE: This DRAW-TITE Class 5 hitch is designed to fit: 2007-2021 Toyota Tundra.
Product Details
Description:Ultra Frame® Class 5 Trailer Hitch, 2 Inch Square Receiver, Black
Finish:Black Powder Coat Over E-Coat
Weight Carrying:1,200/12,000 lbs. (TW/GTW)
Weight Distributing:1,400/14,000 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Box w/Label
Shipping Weight:80.6 lbs.
Shipping Size:46.25" L x 35.75" W x 14.25" H
UPC:742512419351
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
2007 - 2009 Toyota, Tundra, (See Footnote CP) 30 min
2010 - 2014 Toyota, Tundra, (See Footnote CP) 30 min
2015 - 2017 Toyota, Tundra, (See Footnote CP) 30 min
2018 - 2021 Toyota, Tundra, (See Footnote CP) 30 min
