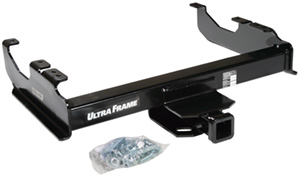

Class 5 Trailer Hitch - 12000 lbs
Part Number 41938
 [ Print ]
Click thumbnail image to enlarge.
Product Features
DRAW-TITE® Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 12,000 lbs. gross trailer weight (GTW) and up to 1,200 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 15,000 lbs. weight distribution (WD) and 1,500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
  • CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
  • STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
  • TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
  • CAPACITY: Rated for up to 12,000 lbs. GTW and up to 1,200 lbs. TW. For use with Weight Distribution systems of up to 15,000 lbs. WD and 1,500 lbs. WDTW.
  • VERSATILE: This DRAW-TITE Class 5 hitch is designed to fit: 1963-1986 Chevrolet C10, 1963-1986 Chevrolet C20, 1988-1991 Chevrolet C2500, 1963-1986 Chevrolet C30, 1988-1991 Chevrolet C3500, 1963-1986 Chevrolet K10, 1963-1986 Chevrolet K20, 1988-1991 Chevrolet K2500, 1973-1986 Chevrolet K30, 1988-1991 Chevrolet K3500, 2001-2007 Chevrolet Silverado 3500, 2007-2025 Chevrolet Silverado 3500 HD, 1999-2000 Ford F-350 Super Duty, 1963-1965 GMC 1000 Series, 1963-1965 GMC 1500 Series, 1963-1965 GMC 2500 Series, 1963-1966 GMC 3000, 1963-1966 GMC 3500, 1975-1978 GMC C15, 1967-1974 GMC C15/C1500, 1979-1999 GMC C1500, 1967-1978 GMC C25, 1979-2000 GMC C2500, 1967-1978 GMC C35, 1979-2000 GMC C3500, 1967-1978 GMC K15, 1979-1999 GMC K1500, 1967-1978 GMC K25, 1979-2000 GMC K2500, 1968-1978 GMC K35, 1979-2000 GMC K3500, 2001-2007 GMC Sierra 3500, 2007-2024 GMC Sierra 3500 HD.
Product Details
Description:Ultra Frame® Class 5 Trailer Hitch, 2 Inch Square Receiver, Black
Finish:Black Powder Coat Over E-Coat
Weight Carrying:1,200/12,000 lbs. (TW/GTW)
Weight Distributing:1,500/15,000 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Box w/Label
Shipping Weight:73 lbs.
Shipping Size:35.63" L x 30.13" W x 8.5" H
UPC:742512419382
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
1963 - 1972 Chevrolet, C10, All Styles 40 min
1963 - 1972 Chevrolet, C20, All Styles 40 min
1963 - 1972 Chevrolet, C30, All Styles 40 min
1963 - 1972 Chevrolet, K10, All Styles 40 min
1963 - 1972 Chevrolet, K20, All Styles 40 min
1963 - 1965 GMC, 1000 Series, All Styles 40 min
1963 - 1965 GMC, 1500 Series, All Styles 40 min
1963 - 1965 GMC, 2500 Series, All Styles 40 min
1963 - 1966 GMC, 3000, All Styles 40 min
1963 - 1966 GMC, 3500, All Styles 40 min
1967 - 1974 GMC, C15/C1500, All Styles 40 min
1967 - 1978 GMC, C25, All Styles 40 min
1967 - 1978 GMC, C35, All Styles 40 min
1967 - 1974 GMC, K15, All Styles 40 min
1967 - 1978 GMC, K25, All Styles 40 min
1968 - 1974 GMC, K35, All Styles 40 min
1973 - 1984 Chevrolet, C10, All Styles 40 min
1973 - 1984 Chevrolet, C20, All Styles 40 min
1973 - 1984 Chevrolet, C30, All Styles 40 min
1973 - 1984 Chevrolet, K10, All Styles 40 min
1973 - 1984 Chevrolet, K20, All Styles 40 min
1973 - 1974 Chevrolet, K30, All Styles 40 min
1975 - 1978 GMC, C15, All Styles 40 min
1975 - 1978 GMC, K15, All Styles 40 min
1977 - 1984 Chevrolet, K30, All Styles 40 min
1977 - 1978 GMC, K35, All Styles 40 min
1979 - 1984 GMC, C1500, All Styles 40 min
1979 - 1984 GMC, C2500, All Styles 40 min
1979 - 1984 GMC, C3500, All Styles 40 min
1979 - 1984 GMC, K1500, All Styles 40 min
1979 - 1984 GMC, K2500, All Styles 40 min
1979 - 1984 GMC, K3500, All Styles 40 min
1985 - 1986 Chevrolet, C10, w/34" Wide Frames 40 min
1985 - 1986 Chevrolet, C20, w/34" Wide Frames 40 min
1985 - 1986 Chevrolet, C30, w/34" Wide Frames 40 min
1985 - 1986 Chevrolet, K10, w/34" Wide Frames 40 min
1985 - 1986 Chevrolet, K20, w/34" Wide Frames 40 min
1985 - 1986 Chevrolet, K30, w/34" Wide Frames 40 min
1985 - 1999 GMC, C1500, w/34" Wide Frames 40 min
1985 - 2000 GMC, C2500, w/34" Wide Frames 40 min
1985 - 2000 GMC, C3500, w/34" Wide Frames 40 min
1985 - 1986 GMC, K1500, w/34" Wide Frames 40 min
1985 - 1986 GMC, K2500, w/34" Wide Frames 40 min
1985 - 1986 GMC, K3500, w/34" Wide Frames 40 min
1988 - 1991 Chevrolet, C2500, Crew Cab 40 min
1988 - 1991 Chevrolet, C3500, Crew Cab 40 min
1988 - 1991 Chevrolet, K2500, Crew Cab 40 min
1988 - 1991 Chevrolet, K3500, Crew Cab 40 min
1988 - 1999 GMC, K1500, w/34" Wide Frames 40 min
1988 - 2000 GMC, K2500, w/34" Wide Frames 40 min
1988 - 2000 GMC, K3500, w/34" Wide Frames 40 min
1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames 40 min
2001 - 2007 Chevrolet, Silverado 3500, (Classic), Cab & Chassis, w/34" Wide Frames 40 min
2001 - 2007 GMC, Sierra 3500, (Classic), Cab & Chassis, w/34" Wide Frames 40 min
2007 - 2025 Chevrolet, Silverado 3500 HD, Cab & Chassis, w/34" Wide Frames 40 min
2007 - 2024 GMC, Sierra 3500 HD, Cab & Chassis, w/34" Wide Frames 40 min
