Class 5 Trailer Hitch - 10000 lbs
Part Number 41945
 [ Print ]
Click thumbnail image to enlarge.
Product Features
DRAW-TITE® Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 12,000 lbs. weight distribution (WD) and 1,200 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
  • CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
  • STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
  • TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
  • CAPACITY: Rated for up to 10,000 lbs. GTW and up to 1,500 lbs. TW. For use with Weight Distribution systems of up to 12,000 lbs. WD and 1,200 lbs. WDTW.
  • VERSATILE: This DRAW-TITE Class 5 hitch is designed to fit: 2000-2014 Ford E-150 Econoline, 2000-2014 Ford E-250 Econoline, 2000-2002 Ford E-350 Econoline, 2003-2014 Ford E-350 Econoline Super Duty.
Product Details

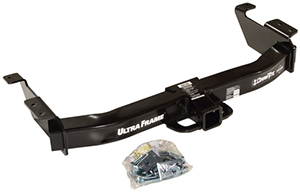

Description:Ultra Frame® Class 5 Trailer Hitch, 2 Inch Square Receiver, Black
Finish:Black Powder Coat Over E-Coat
Weight Carrying:1,500/10,000 lbs. (TW/GTW)
Weight Distributing:1,200/12,000 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Box w/Label
Shipping Weight:44 lbs.
Shipping Size:40.9" L x 20.5" W x 5.8" H
UPC:742512419450
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
2000 - 2002 Ford, E-150 Econoline, All Styles 30 min
2000 - 2002 Ford, E-250 Econoline, All Styles 30 min
2000 - 2002 Ford, E-350 Econoline, All Styles 30 min
2003 - 2007 Ford, E-150 Econoline, All Styles 30 min
2003 - 2007 Ford, E-250 Econoline, All Styles 30 min
2003 - 2007 Ford, E-350 Econoline Super Duty, All Styles 30 min
2008 Ford, E-150 Econoline, All Styles 30 min
2008 Ford, E-250 Econoline, All Styles 30 min
2008 Ford, E-350 Econoline Super Duty, All Styles 30 min
2009 - 2014 Ford, E-150 Econoline, All Styles 30 min
2009 - 2014 Ford, E-250 Econoline, All Styles 30 min
2009 - 2014 Ford, E-350 Econoline Super Duty, All Styles 30 min
