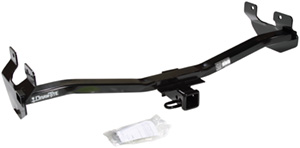

Class 3 Trailer Hitch - 5000 lbs
Part Number 75382
 [ Print ]
Click thumbnail image to enlarge.
Product Features
DRAW-TITE® Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
  • CUSTOM DESIGNS: DRAW-TITE Class 3 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
  • STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
  • TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
  • CAPACITY: Rated for up to 5,000 lbs. GTW and up to 500 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,000 lbs. WD and 500 lbs. WDTW.
  • VERSATILE: This DRAW-TITE Class 3 hitch is designed to fit: 2006-2010 Hummer H3.
Product Details
Description:Class 3 Trailer Hitch, 2 Inch Square Receiver, Black
Finish:Black Powder Coat Over E-Coat
Weight Carrying:500/5,000 lbs. (TW/GTW)
Weight Distributing:500/5,000 lbs. (TW/GTW)
Warranty:Limited Lifetime
Install Instructions:Click Here For Instructions
Product Packaging
Package Type:Box w/Label
Shipping Weight:35.8 lbs.
Shipping Size:48.25" L x 16.3" W x 10.5" H
UPC:742512753820
Product Applications
No Drilling Required No Drilling Required No Drilling Required Drilling Required Drilling Required
Year Make/Model/Style Install
2006 - 2010 Hummer, H3, All Styles 25 min
